PROCESS ENGINEERING
  |
|
planning the process Per part requirements
-
quoting the part - material costs, outside processes, inspection requirements, machine and fixturing requirements with experiance with aerospace and military parts
-
machining requirements - what machines it has to go in first, fixturing requirements
-
in-process and final inspection - what dimensions need to be held closer so the fixturing for subsequent ops will work
-
outside processes - plating, heat treatment - nadcap approved vendors
-
material procurement - quoting - domestic suppliers
-

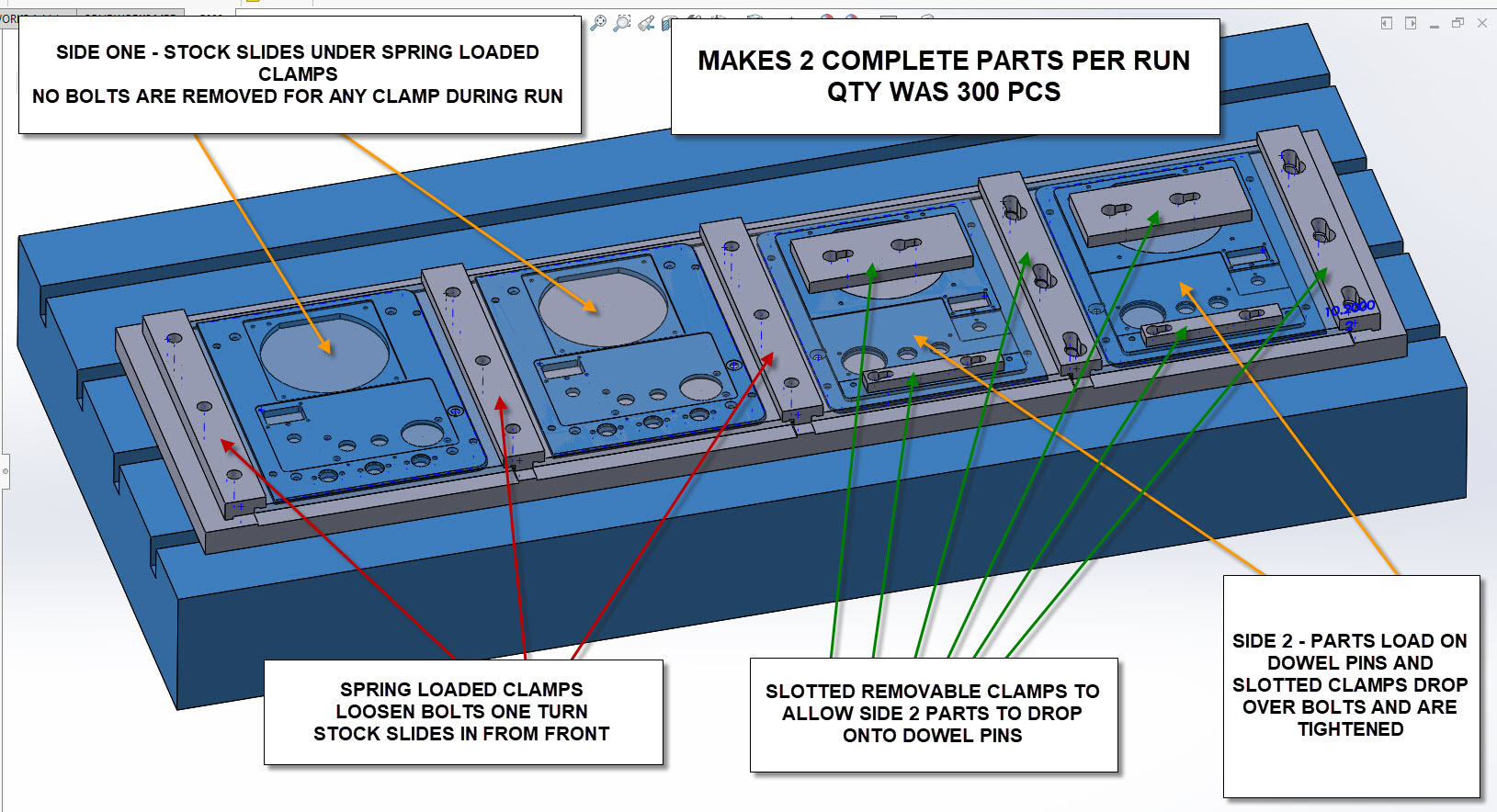

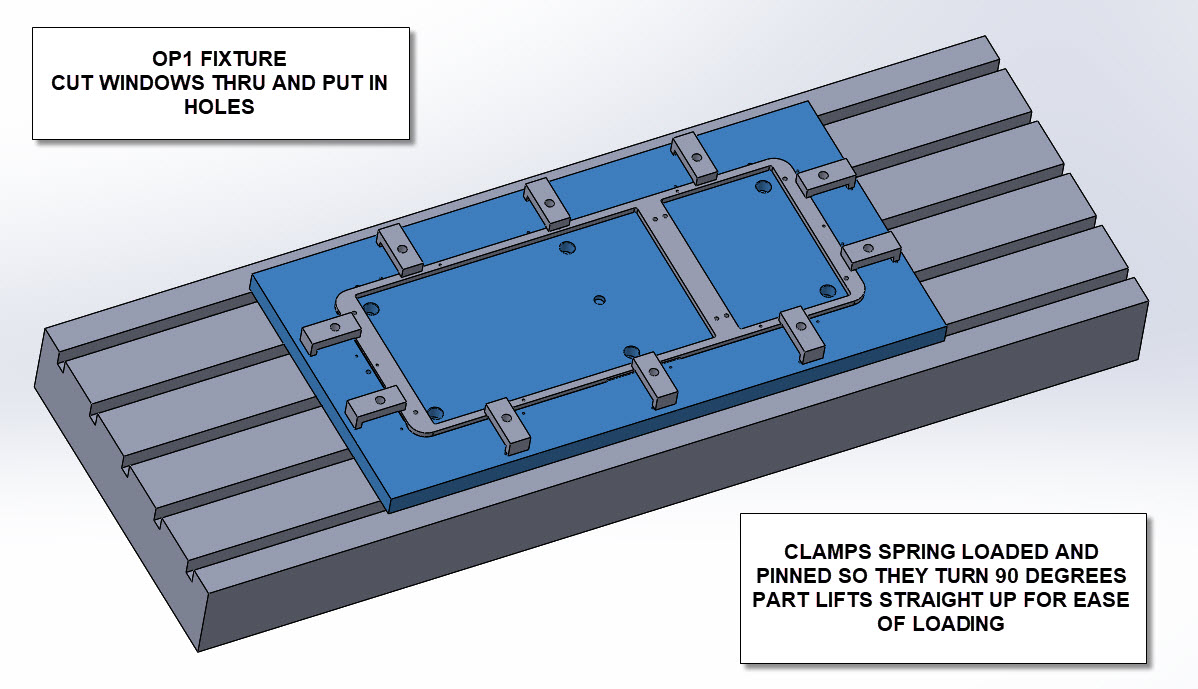

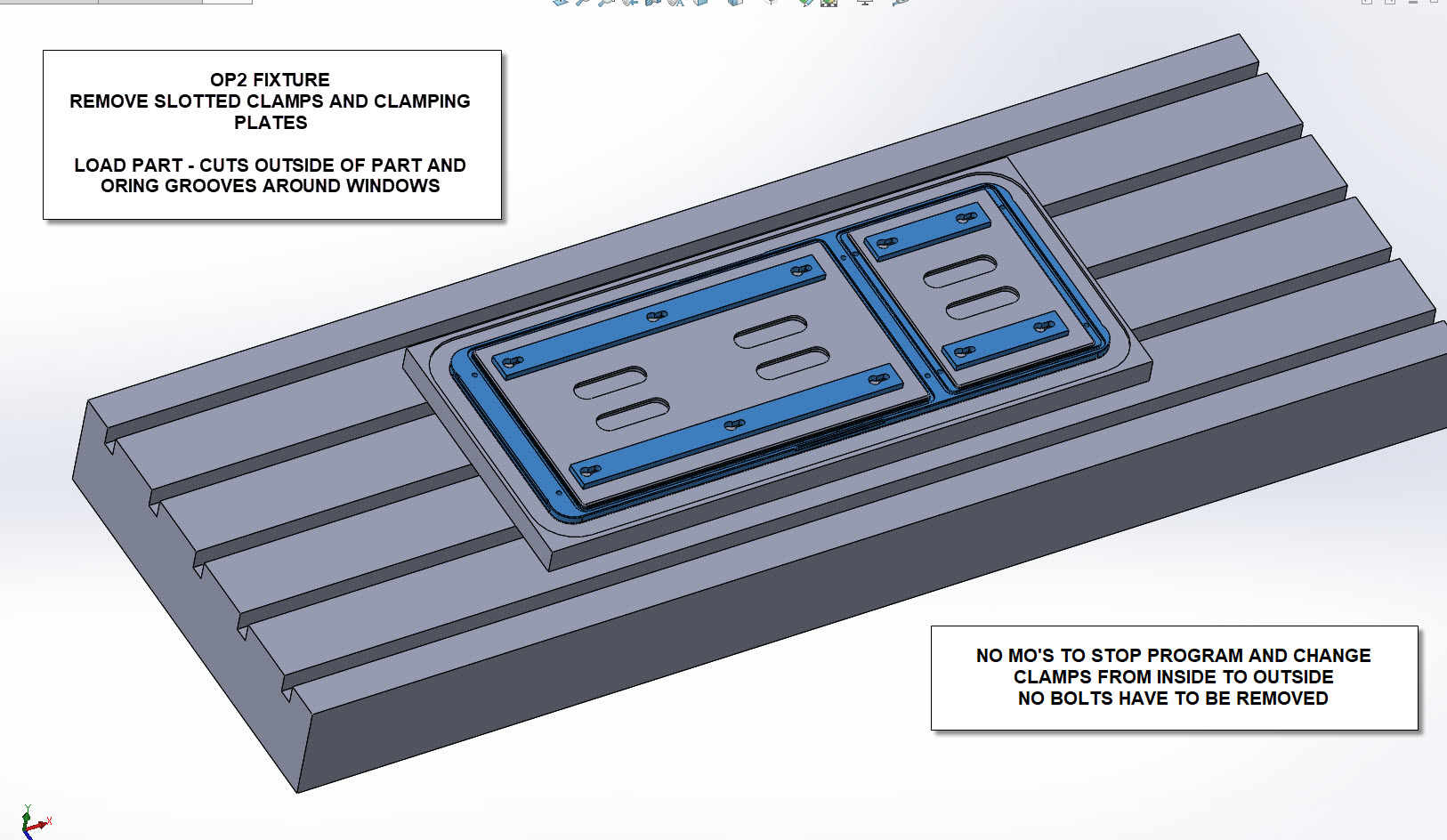

gDT analysis for fixture design - designing fixturing that locates on datum planes
-
programming so the process will be stable thru the whole run
 |
 |
 |
 |
